Air-Cooled or Water-Cooled UV LED: How to Choose
Air-cooled UV LEDs need no chiller, integrate fastest at the lowest cost; water-cooled deliver higher power, tolerate extreme temperature and dust, run quietly and reach 1.35 m in one unit.
One-sentence answer: Air-cooled UV LEDs need no chiller, run on 48 V DC, integrate fastest at the lowest cost and deliver 2–20 W/cm²; water-cooled UV LEDs remove heat through a coolant loop, deliver higher power (25–30 W/cm²), tolerate extreme temperature and dust, run quietly and reach 1.35 m in a single unit. Air-cooled is the default for normal factories; water-cooled for harsh environments or very high power.
Why LEDs need cooling
A significant share of LED electrical power becomes heat; rising chip temperature lowers optical output and shortens life. Cooling efficiency directly limits sustainable output, which is why the Excelitas SLM technology lists cooling as one of its four elements.

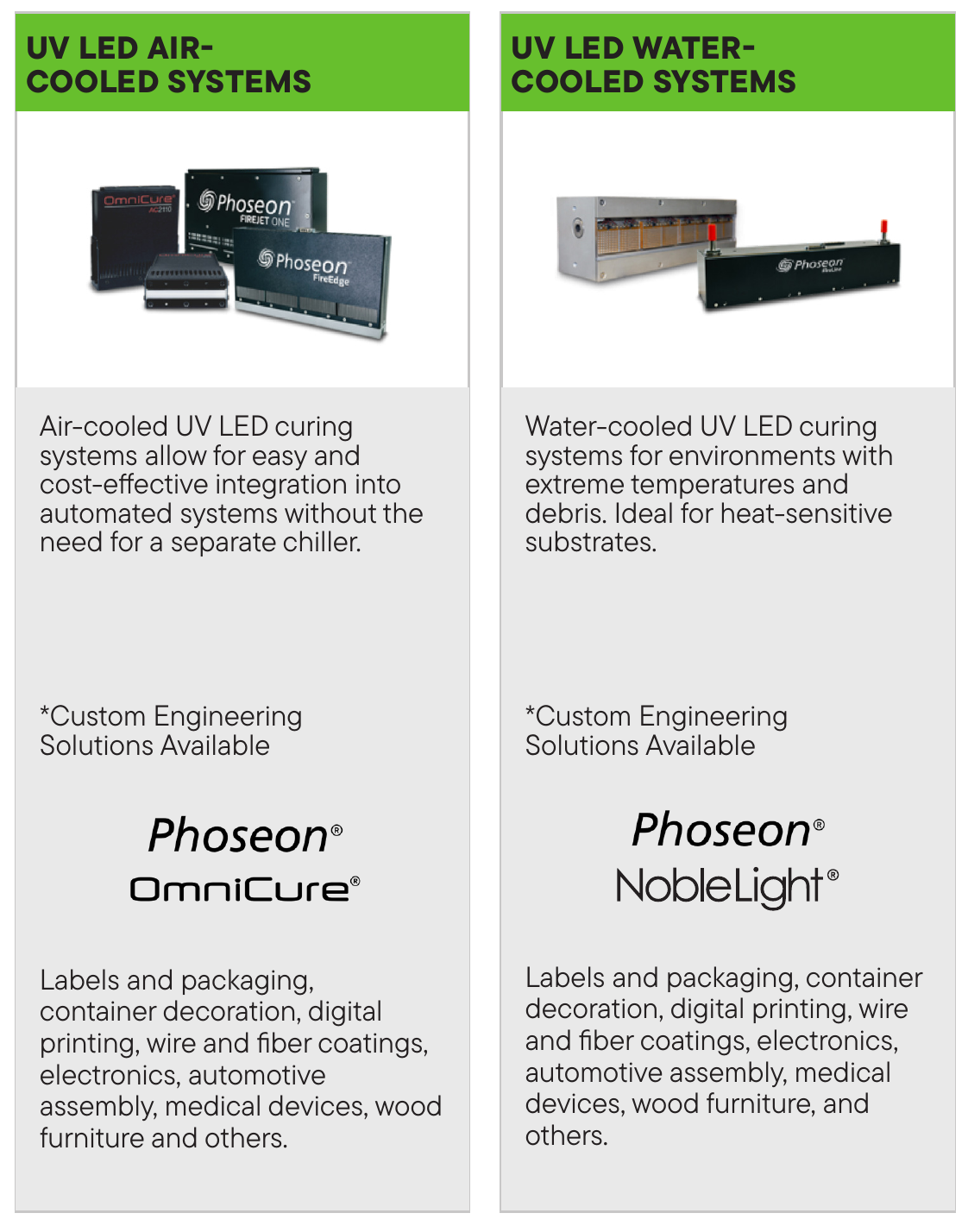

Air-cooled is the first choice for normal factories; water-cooled for harsh environments or very high power. Image source: Excelitas UV Curing Product Selector Guide.
Comparison
| Item | Air-cooled | Water-cooled |
|---|---|---|
| Infrastructure | None | Chiller and plumbing (e.g. 6 LPM) |
| Integration speed | Fastest | Piping required |
| Peak irradiance | 2–20 W/cm² | 10–30 W/cm² |
| Environment | Normal factory | High temperature, dust, oil mist |
| Noise | Fan noise | Low |
| Width | Tiled modules | Up to 1,350 mm in one unit |
| Maintenance | Clean fans/filters | Coolant maintenance |
Decision checklist
- No chiller, fast start-up → air-cooled
- Hot, dusty shop floor, quiet operation required → water-cooled
- Heat-sensitive substrate → both are infrared-free; decide on power
- Width over 1 m in one unit → water-cooled
- Fiber draw tower → air-cooled FJ228 or water-cooled FP300 depending on draw speed
Related products
Air-cooled: Phoseon FireEdge / FireJet (no chiller, 375 mm modules tile), and the OmniCure LX500 spot system is also air-cooled. Water-cooled: Phoseon FireLine / VeriCure, Semray UV5000+.
FAQ
Q: Does an air-cooled unit blow heat onto the workpiece?
A: The airflow is an internal heat-sink path and the source emits no infrared; workpiece temperature rise is far below a mercury lamp.
Q: Can air-cooled LEDs run continuously?
A: Yes; Phoseon air-cooled systems are rated 40,000+ hours provided the intakes are not blocked.
