OmniCure · Replacement Lamp

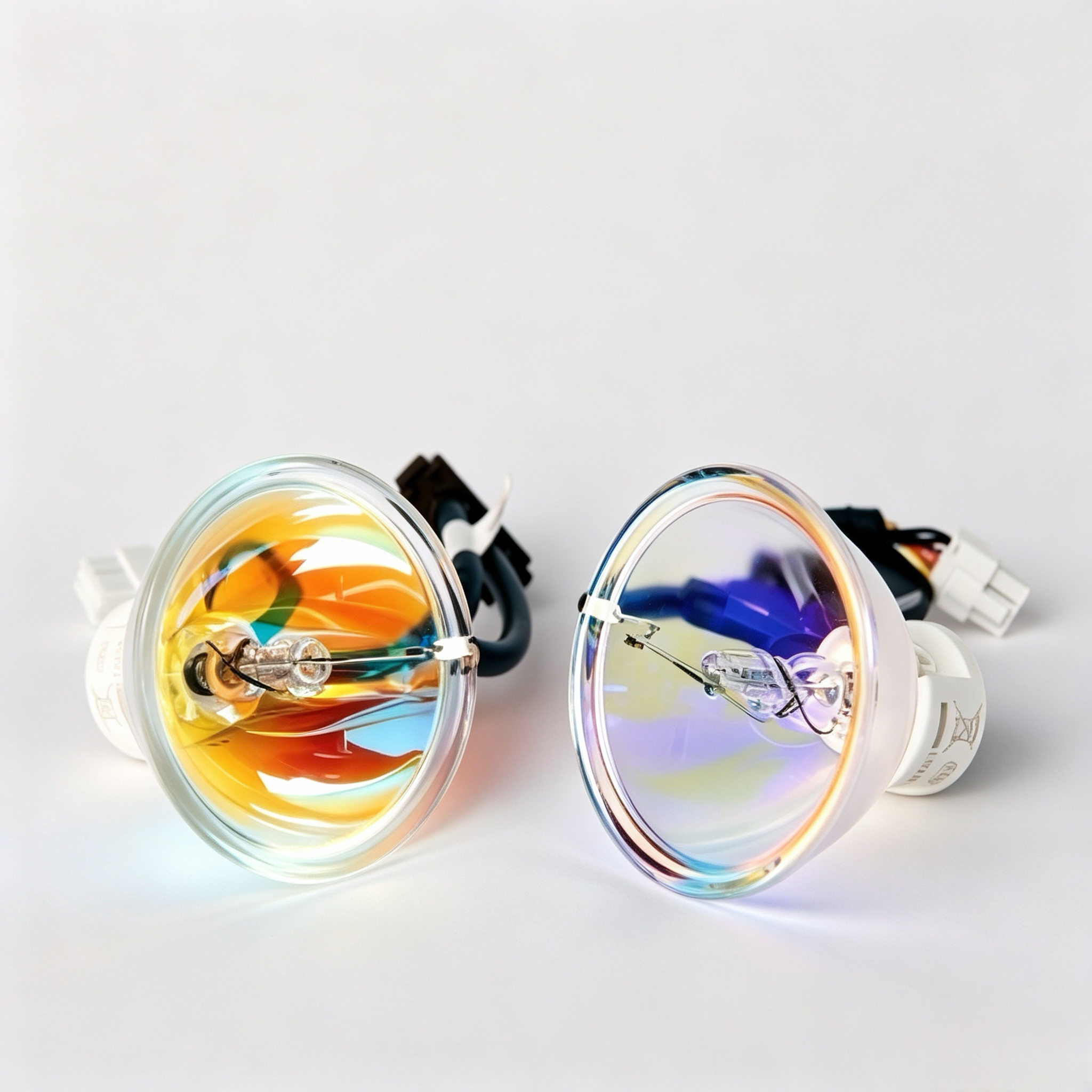

OmniCure S2000 Elite Lamp — 200 W UV Curing Lamp (012-64000R)
High-Pressure Mercury UV Curing Spot Source
250–600 nm · 200 W
250–600 nm
Spectral Range
200 W
Hg Short-Arc
Up to 40 W/cm²
Long-wave UV
2,000 h
Guaranteed · ~4,000 h typical
Overview

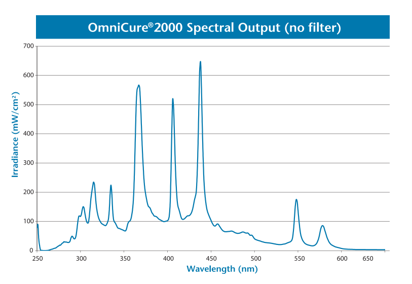

The Omnicure S2000 series carries a high-pressure mercury lamp that integrates and emits wavelengths from 250 nm to 600 nm in a fixed ratio, forming an extremely strong spectral distribution across the UV band. With long-wave UV irradiance up to 40 W/cm², this high-power lamp achieves faster curing.

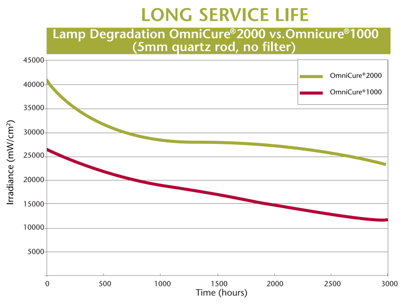

The Omnicure S2000 200 W lamp (012-64000R) is guaranteed for 2,000 hours of service. High output, a gentle decay curve and the S2000 closed-loop feedback auto-compensation greatly extend lamp life and lower the cost of use — most of our customers reach 4,000 hours of lamp life.
This makes the S2000 suitable for high-volume, large-scale production as well as small-batch experiments in university laboratories and research institutes.
Features
- ✓Intelli-Lamp smart lamp technology — patented technology gives the S2000 automatic time-tracking and broad-spectrum output, so it adapts to a wide range of adhesive and substrate bonding applications.
- ✓Selectable peak irradiance — for any application you can select one of the most effective peak irradiance levels to serve as the spot source of the curing system.
- ✓Overcomes oxygen inhibition — where adhesives are prone to oxygen inhibition, our unique tube technology outputs enough optical power in the short-wave UV range to promote a smooth, seamless surface polish on acrylic resins.
- ✓No inert gas, no secondary cure — curing needs no inert-gas environment and no high-temperature secondary cure.
Benefits
- ✓Guaranteed lamp life — every 200 W lamp is guaranteed for 2,000 hours of service.
- ✓Extended real-world life — high optical power, a gentle decay curve and closed-loop feedback auto-compensation push lamp life much further; most customers reach 4,000 hours.
- ✓Lower cost of ownership — longer usable life per lamp means fewer replacements and a lower cost of use over the life of the system.
- ✓Faster curing throughput — up to 40 W/cm² of long-wave UV irradiance cures parts faster, lifting throughput on high-volume lines.
Which lamp do I need?
Standard
012-68000R / 012-64000RBroad-spectrum output for the widest range of UV adhesive bonding applications.
Surface Cure
012-69000R / 012-54000RReshapes the power spectrum for a smooth, seamless, tack-free finish on acrylic resins (overcomes oxygen inhibition).
Part Numbers
Search by part number — order the exact lamp you need.
| 012-64000R | Standard Spare 200 W Lamp for S2000 and S1500 | Ask price → |
|---|---|---|
| 012-54000R | Spare 200 W Lamp for Surface Curing for S2000 | Ask price → |
| 012-68000R | S2000 Elite Lamp Module – Standard | Ask price → |
| 012-69000R | S2000 Elite Lamp Module – Surface Cure | Ask price → |
Also searched as: 021-64000R · 012 64000R · S2000 64000R · 64000R lamp
Need a replacement S2000 lamp? Get pricing today.
✉ sompoch@etia-tech.com · 📍 Bangkok, Thailand
Frequently asked questions
Which S2000 lamp do I need — Standard or Surface Cure?＋
Standard (012-68000R / spare 012-64000R) suits most UV adhesive bonding. Surface Cure (012-69000R / spare 012-54000R) reshapes the spectrum for a tack-free, seamless acrylic finish. Not sure? Send us your application and we'll confirm the right part number.
How long does the S2000 200 W lamp last?＋
It is guaranteed for 2,000 hours. With the S2000's closed-loop feedback auto-compensation and a gentle decay curve, most customers reach around 4,000 hours.
Are these genuine OmniCure lamps with warranty?＋
Yes — ETIA is an authorized OmniCure distributor; genuine lamps with full manufacturer warranty, not grey-market imports.
Do you stock S2000 lamps in Thailand?＋
Yes — local stock and fast delivery, so your production line isn't left waiting for a replacement.
